Description
Product Overview

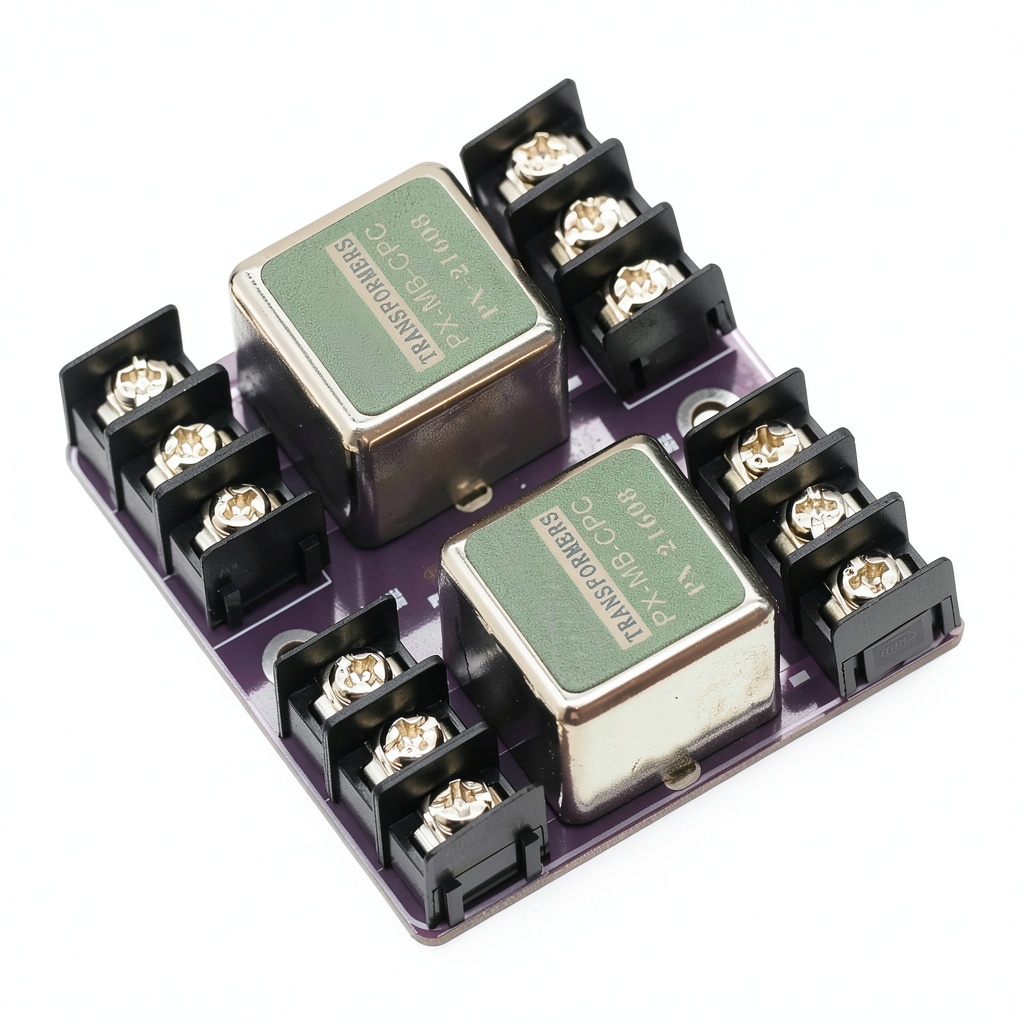

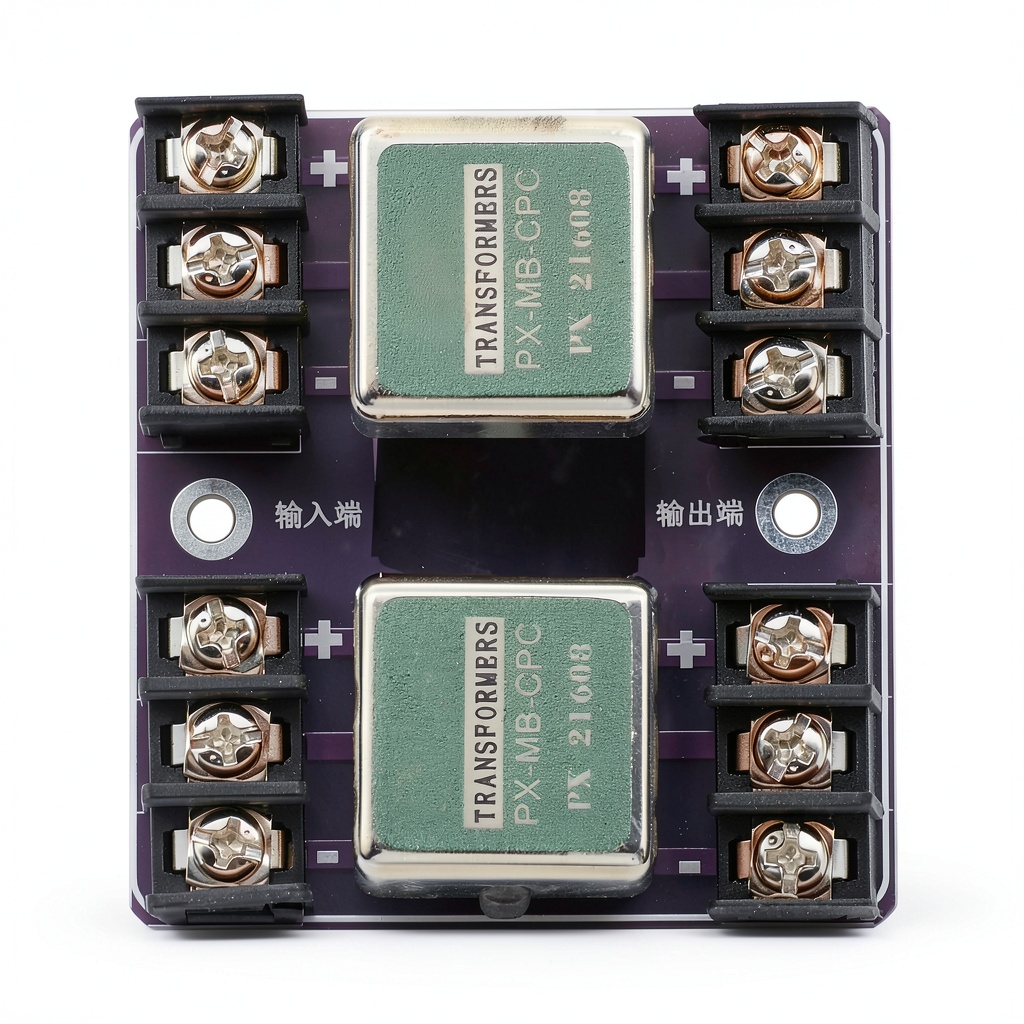

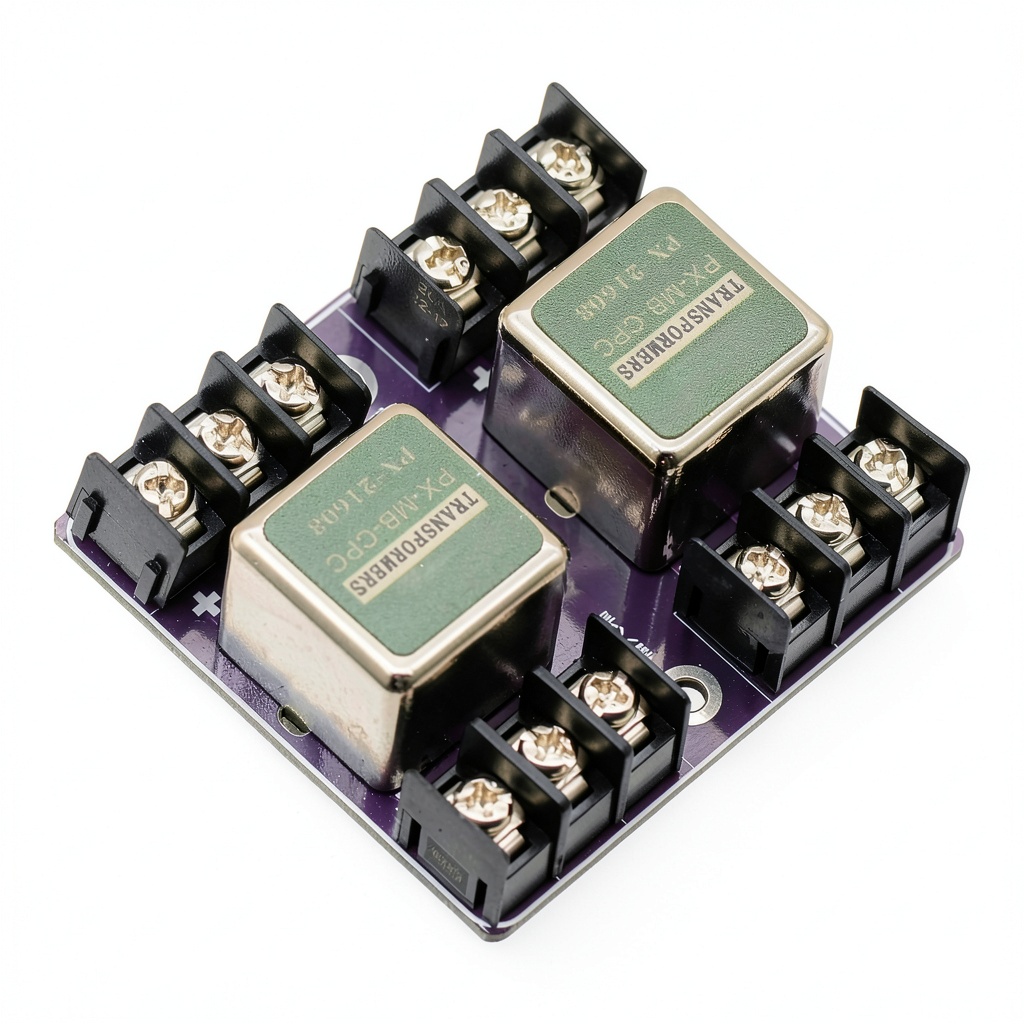

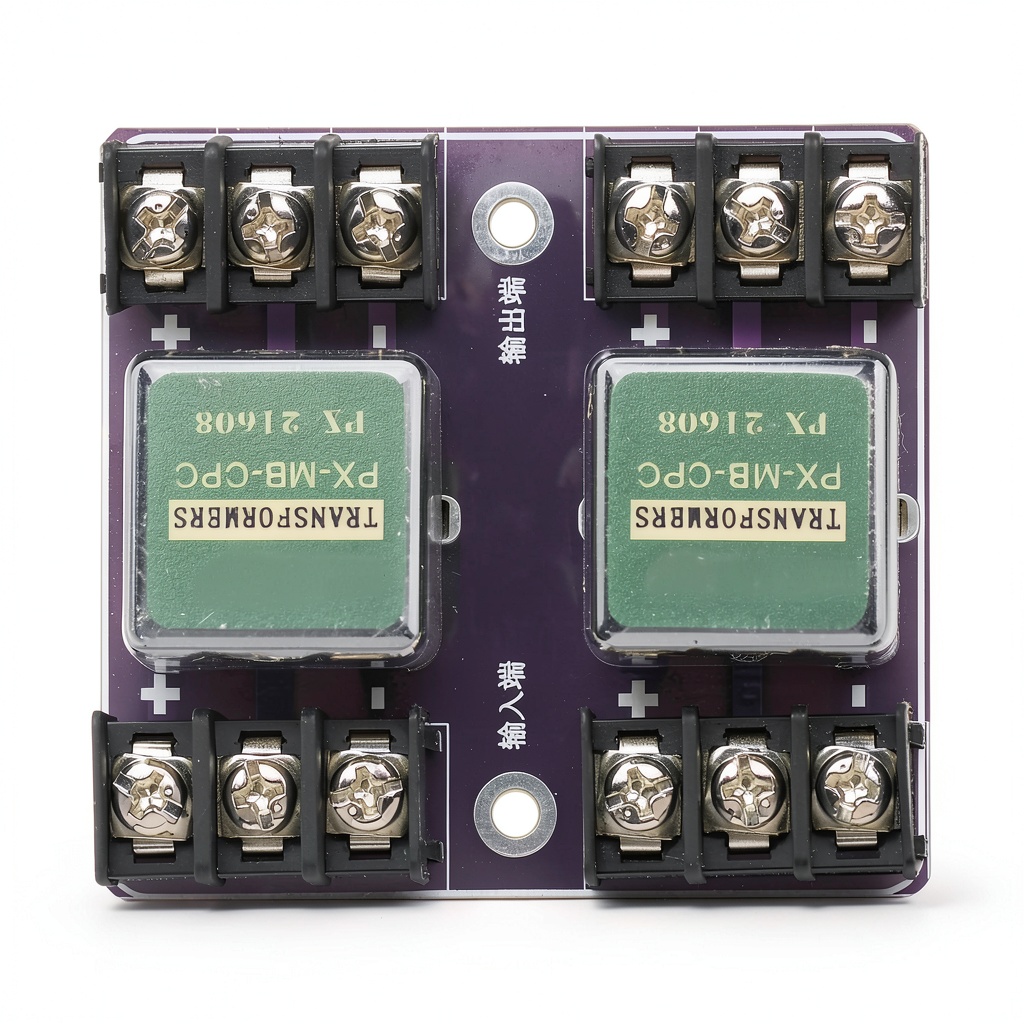

The Balanced and Unbalanced Conversion Audio Isolator PX-21608 from GODIYMODULES is engineered to meet the demanding requirements of high‑fidelity audio systems. Featuring a 600:600 isolation ratio, the unit delivers a perfectly balanced signal path that preserves the integrity of both low‑frequency bass and crystal‑clear treble. Its flat frequency response from 20Hz to 20KHz ensures that no part of the audible spectrum is emphasized or attenuated, providing a true representation of the original source material.
Constructed with high‑purity oxygen‑free copper windings and a permalloy core, the isolator achieves exceptional magnetic permeability and low core loss, resulting in minimal distortion and noise. The compact dimensions of 5.16 x 4.45 x 1.73 inches and a weight of just 3.35 ounces make it easy to integrate into tight spaces without sacrificing performance. The device is rated for a voltage handling capability that comfortably exceeds typical preamp requirements, while its robust enclosure protects against mechanical stress and environmental factors.
Usage
Designed for professional audio environments, this isolator excels in high‑end HIFI preamplifiers, studio mixing consoles, and audiophile DIY projects. Whether you are building a custom preamp, upgrading an existing system, or seeking to improve signal clarity in a home theater setup, the PX‑21608 provides a reliable solution for impedance matching and noise reduction. Its wide bandwidth makes it suitable for both analog and digital audio sources, ensuring seamless compatibility with a variety of equipment.
In addition to studio applications, the isolator is ideal for live‑sound reinforcement where clean signal separation is critical. By placing the unit between a microphone preamp and power amplifier, engineers can prevent ground loops and eliminate hum, resulting in a cleaner stage mix. The transformer’s ability to handle high‑current loads also makes it a valuable component in guitar pedal chains and other musical instrument interfaces.
Why Choose Us
GODIYMODULES has a reputation for delivering precision‑engineered audio components that combine rigorous testing with meticulous craftsmanship. Each isolator undergoes a multi‑stage quality assurance process, including magnetic field uniformity checks, thermal stability assessments, and acoustic performance validation. This commitment to excellence ensures that every unit meets the exacting standards required by professional audio engineers and discerning audiophiles.

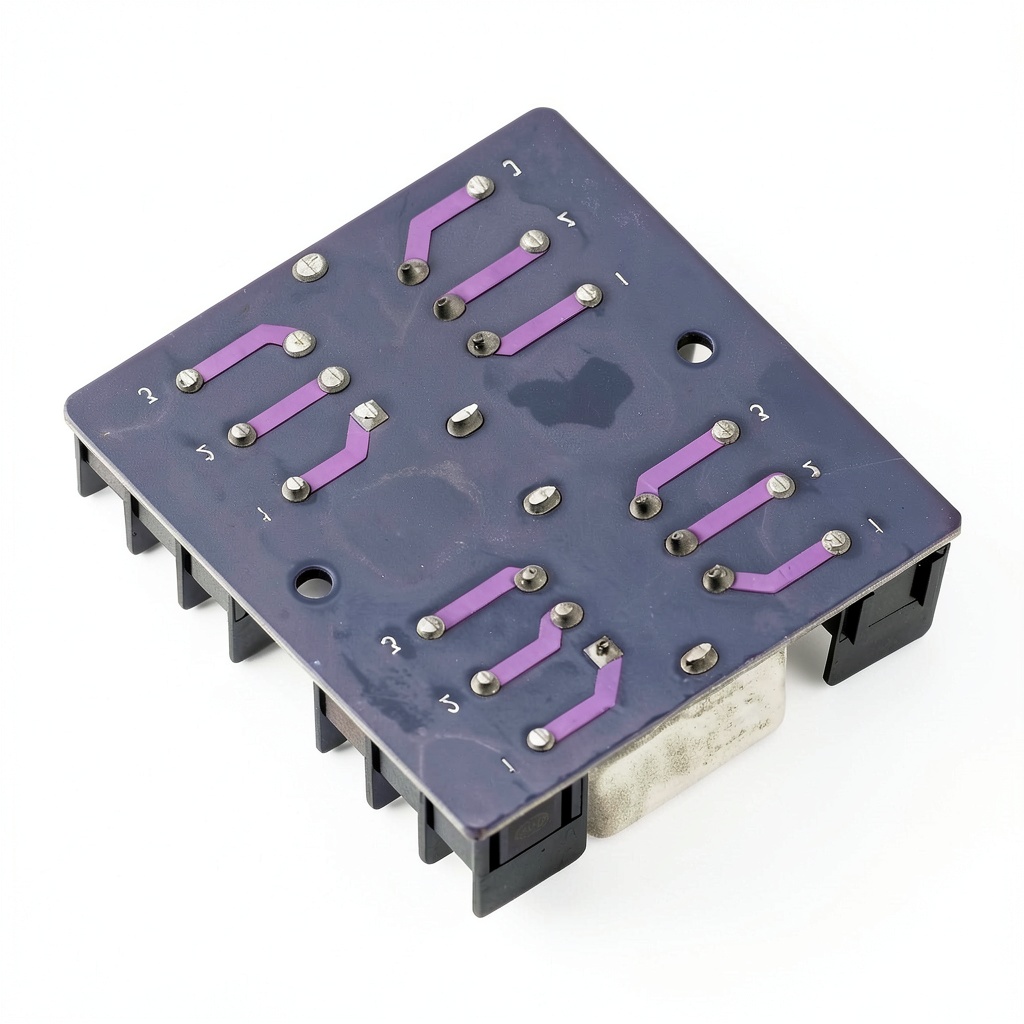

Our focus on material selection sets us apart. The use of high‑purity copper reduces resistive losses, while the permalloy core provides superior magnetic characteristics that translate into lower distortion and higher signal fidelity. The transformer’s design also incorporates a reinforced PCB layout that minimizes electromagnetic interference, further enhancing overall performance.
Customer support is a cornerstone of our service model. Buyers receive comprehensive technical documentation, including wiring diagrams, installation guidelines, and troubleshooting tips. In addition, our dedicated support team is available to assist with any integration challenges, ensuring a smooth and successful implementation.
Key Features
- Precise 600:600 isolation for balanced audio signal integrity
- Flat 20Hz‑20KHz frequency response delivers true‑to‑source sound
- High‑purity copper windings reduce resistive loss and noise
- Permalloy core provides superior magnetic permeability and low distortion
- Dedicated after‑sales support with detailed documentation and expert assistance
FAQ
Can this isolator be used at the output of a power amplifier?
No. The isolator is designed for pre‑amp and signal‑level applications only. Connecting it to the high‑voltage output of a power amplifier can damage the unit.
What is the recommended mounting orientation?
The transformer can be mounted in any orientation, but for optimal heat dissipation we recommend a vertical position with adequate airflow around the enclosure.
Is the unit compatible with both balanced and unbalanced audio sources?
Yes. The PX‑21608 supports both balanced and unbalanced configurations, making it versatile for a wide range of audio equipment.
How does the isolator improve sound quality in a DIY audio project?
By providing isolation and impedance matching, the unit eliminates ground loops and reduces noise, resulting in clearer, more detailed audio reproduction.
What warranty does GODIYMODULES offer?
All units come with a one‑year limited warranty covering manufacturing defects, backed by responsive technical support.
