Description
Product Overview

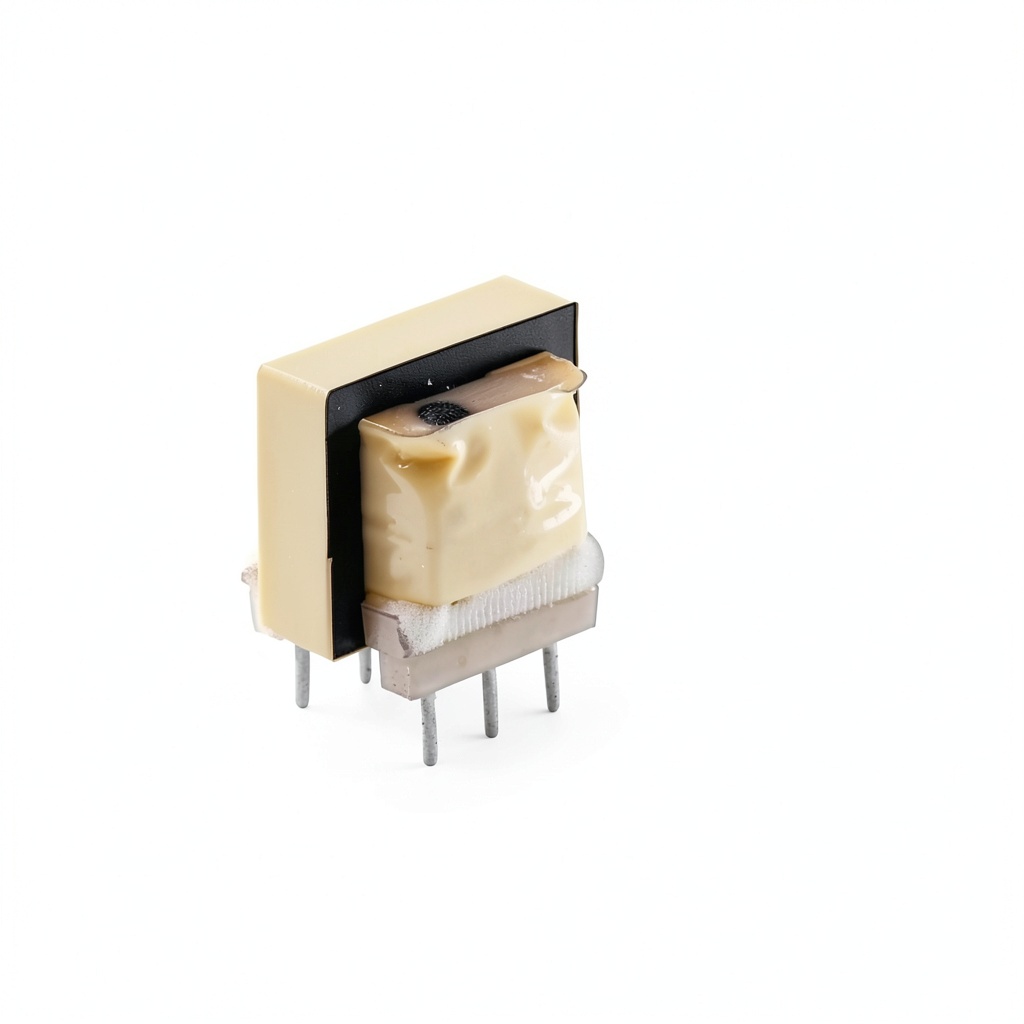

The TY-145P audio transformer by Triad Magnetics is engineered for precise 600 Ω isolation in demanding audio and signal‑conditioning environments. Featuring a 1:1 turns ratio, the transformer maintains signal integrity while delivering a low insertion loss of less than 1.5 dB. Its frequency response is exceptionally flat, ranging from 200 Hz to 15 kHz with only a 2 dB variation, ensuring transparent audio reproduction across the audible spectrum. The device is built with a dielectric strength of 1500 V between primary and secondary windings, providing robust protection against voltage spikes. Its compact through‑hole footprint (2.68 × 1.65 × 0.43 in) makes it ideal for integration into standard PCB layouts, while the 6‑pin PC mount offers secure mechanical stability.
Usage
Designed for both professional and hobbyist applications, the TY-145P excels in audio mixers, pre‑amplifiers, and signal‑routing equipment where clean isolation is critical. Its low insertion loss and tight impedance matching make it suitable for high‑fidelity audio chains, studio monitoring systems, and broadcast equipment. The transformer also performs well in industrial signal‑conditioning circuits, such as sensor interfaces and data acquisition modules, where reliable voltage isolation and minimal signal distortion are required. Its rugged construction tolerates harsh environments, allowing deployment in field‑installed equipment, automotive audio systems, and portable recording gear.
Why Choose Us
Triad Magnetics brings decades of expertise in magnetic component design, ensuring each transformer meets stringent quality standards. The TY-145P undergoes rigorous testing for insertion loss, return loss, and dielectric breakdown, guaranteeing consistent performance across production batches. Our commitment to precision manufacturing results in tight tolerance on impedance and turns ratio, reducing variability in critical audio paths. Additionally, we provide comprehensive technical support, offering design assistance, application notes, and rapid response to customer inquiries. When you select the TY-145P, you benefit from a reliable component backed by a reputable brand known for durability and performance.
Key Features
- Provides 600 Ω isolation with a 1:1 turns ratio for accurate signal transfer.
- Low insertion loss under 1.5 dB preserves audio fidelity in demanding applications.
- Flat frequency response from 200 Hz to 15 kHz ensures consistent tonal balance.
- Robust 1500 V dielectric strength protects against voltage spikes and enhances safety.
- Dedicated technical support and fast replacement service for peace of mind.
FAQ
What is the recommended load impedance for the TY-145P?
The transformer is optimized for a 600 Ω load on both primary and secondary sides, matching the specified impedance for optimal performance.
Can the TY-145P be used in high‑frequency applications?
Yes, its insertion loss remains below 1.5 dB up to 15 kHz, making it suitable for most audio‑frequency and moderate‑frequency signal‑conditioning tasks.
Is the transformer suitable for DC isolation?
While primarily designed for AC audio signals, the 1500 V dielectric rating provides sufficient isolation for low‑level DC biasing in many circuits.
How do I mount the TY-145P on a PCB?
The transformer features a 6‑pin PC mount that fits standard through‑hole footprints. Align the pins with the designated pads, insert, and solder securely for reliable mechanical and electrical connection.
Reviews
There are no reviews yet.
