Vacuum Tube Preamplifier Switching Transformer GODIYMODULES 6.3V5A

Description

Product Overview

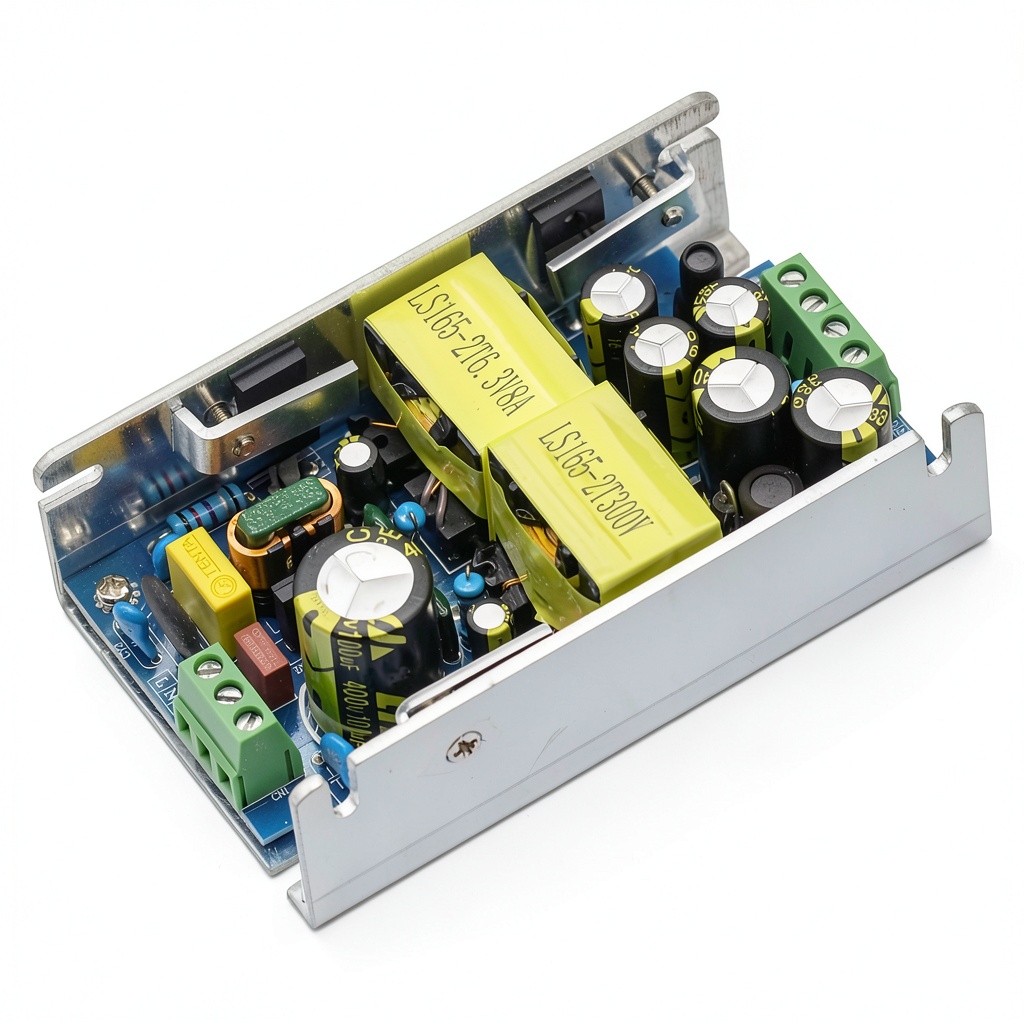

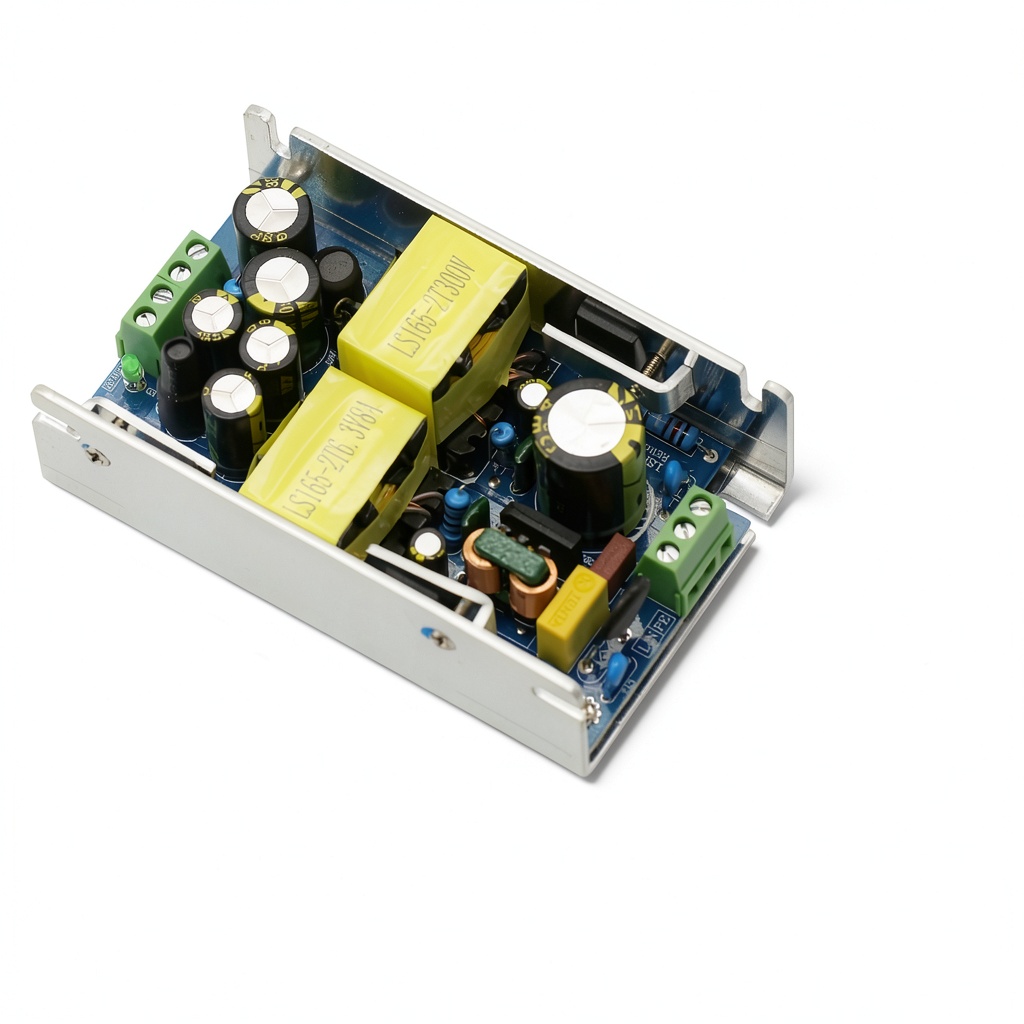

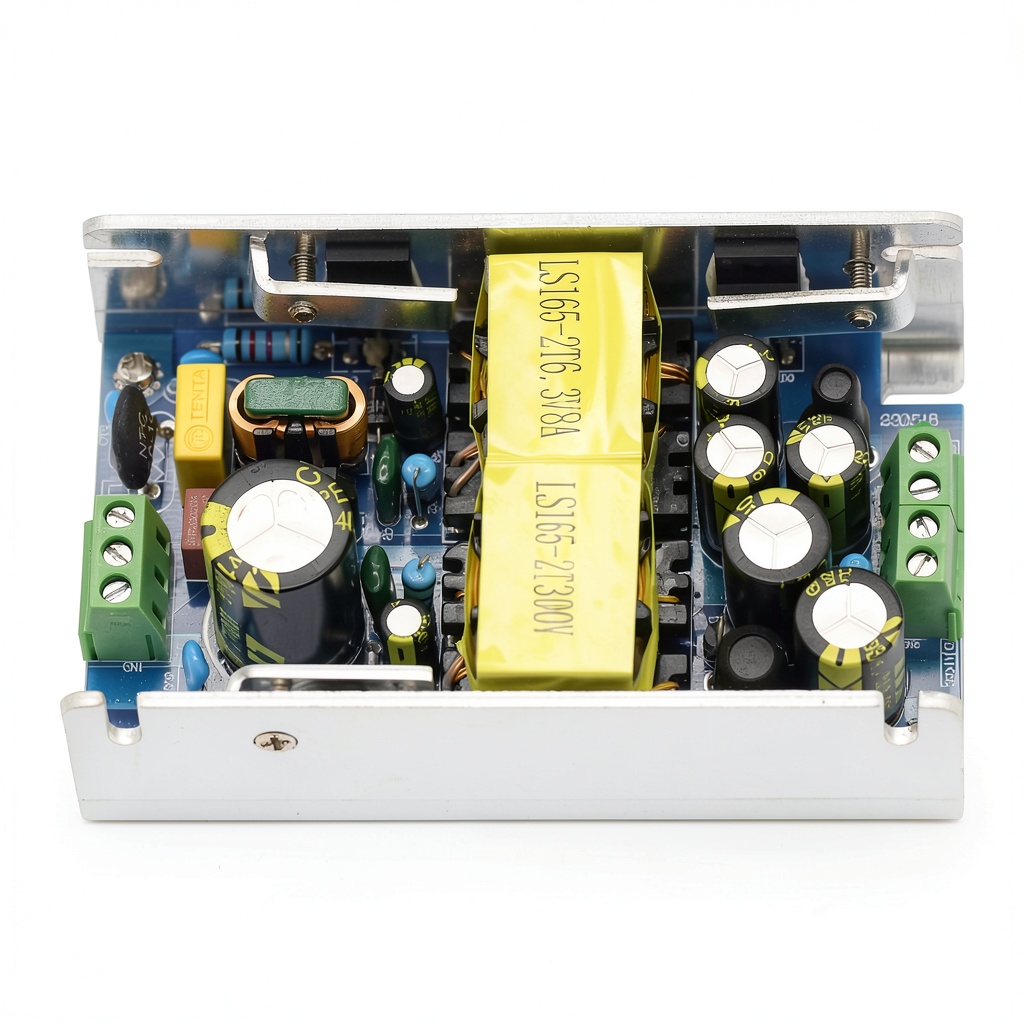

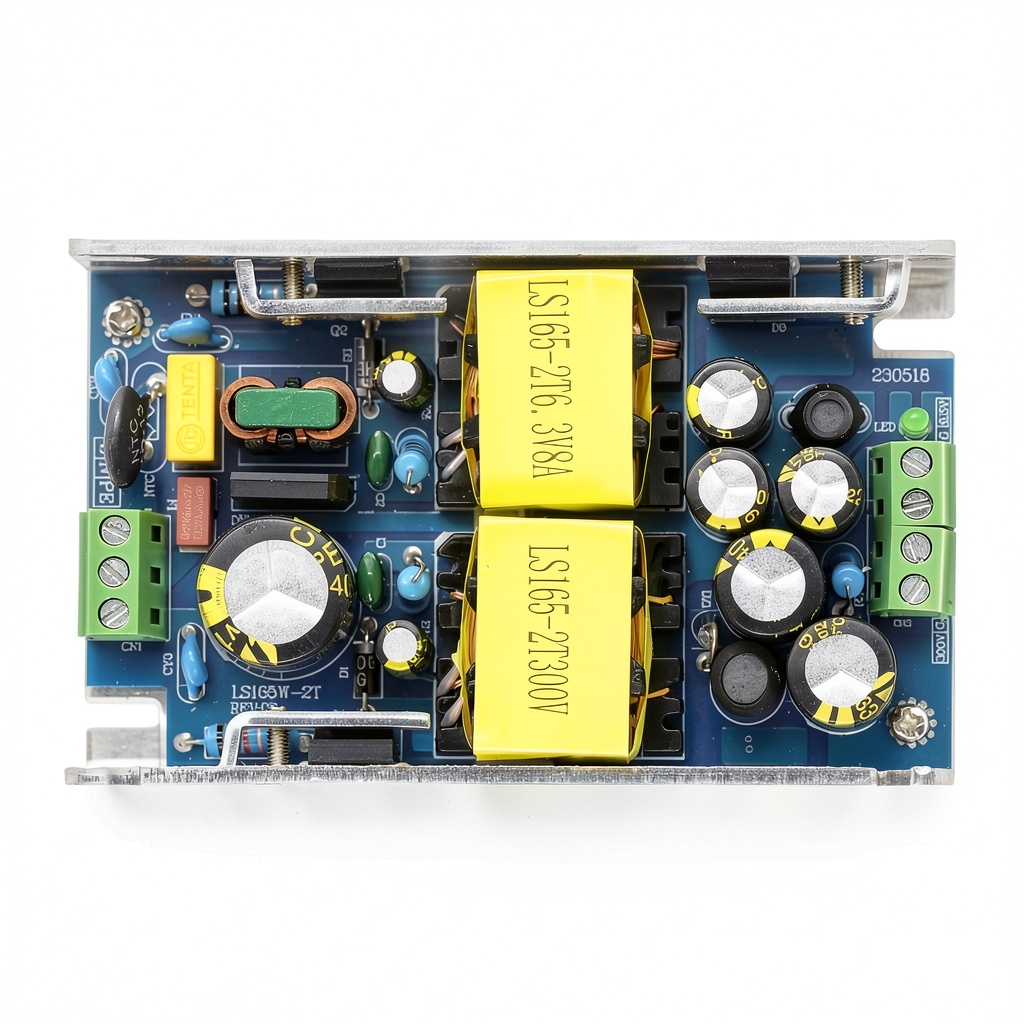

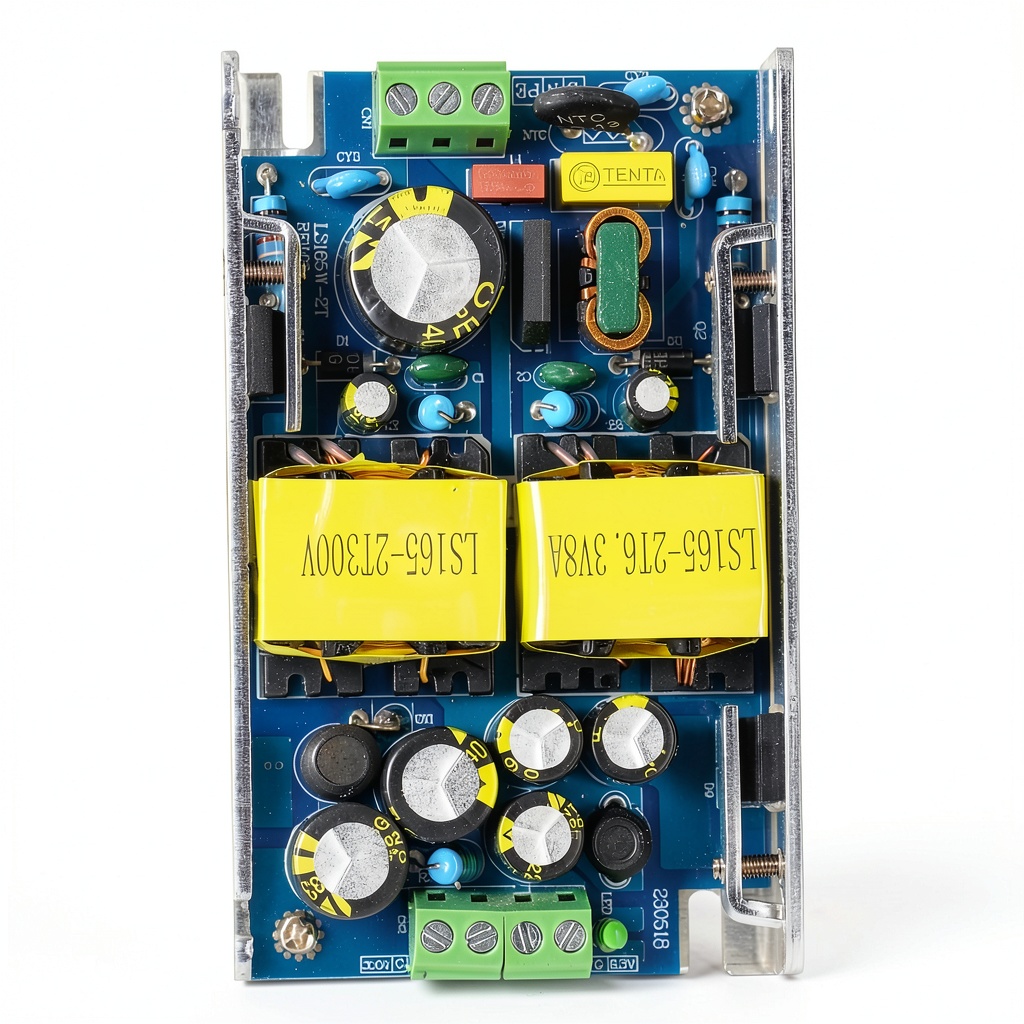

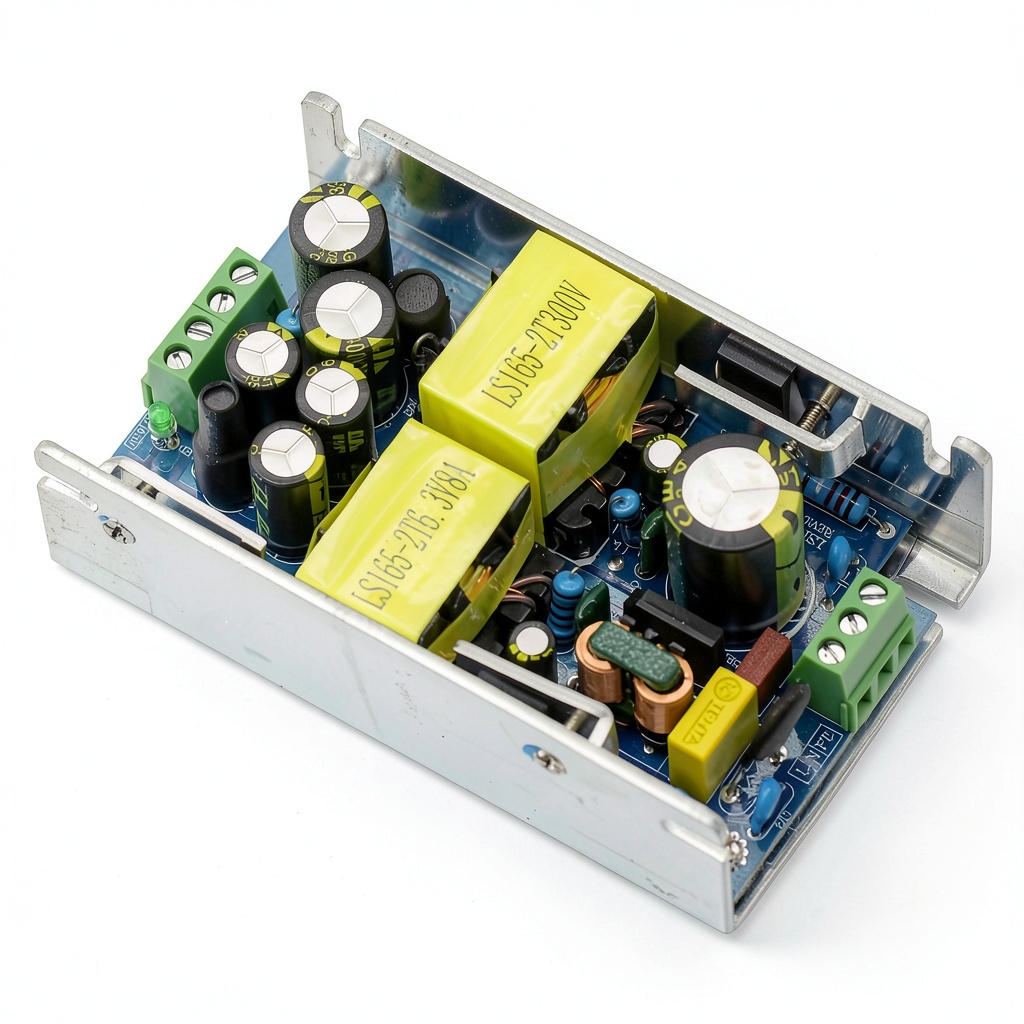

The GODIYMODULES vacuum tube preamplifier switching transformer is engineered to accept a wide input voltage range of 100‑265V AC, making it suitable for global power standards and ensuring consistent operation in diverse environments. Its internal circuitry utilizes high‑efficiency switching technology to minimize energy loss while delivering precise voltage regulation, which is essential for the delicate filament and high‑voltage stages of tube audio equipment.

Providing a dedicated 6.3V filament output rated at 5A and a high‑voltage output of 300V at 300mA, this transformer meets the exacting power requirements of classic vacuum tube designs. The filament supply ensures steady heating of the cathode, reducing microphonics and extending tube life, while the high‑voltage rail supplies the necessary plate voltage for optimal amplification and tonal clarity.

Compatibility is a key strength of this unit; it is fully tested with popular tube types such as EL34, 6P3P, 6P1, 6P14, 6V6, 6P6P, and the FU‑7 series. Whether you are building a single‑ended amplifier, a push‑pull configuration, or a hybrid design, the transformer’s flexible output options allow seamless integration without the need for additional conversion stages.

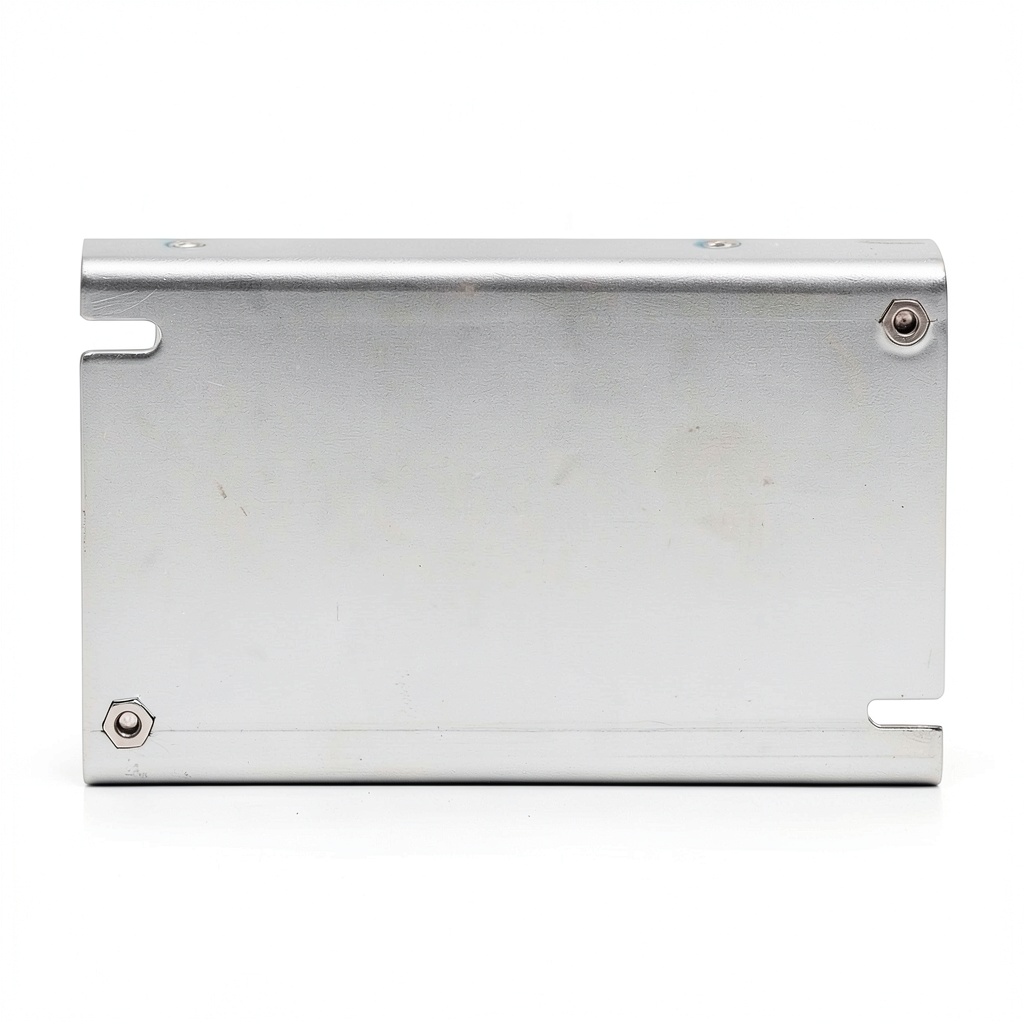

The transformer’s enclosure is fabricated from high‑grade, fire‑resistant polymer with reinforced metal brackets, providing both mechanical durability and electromagnetic shielding. Internal windings are insulated with premium enamel-coated copper wire, reducing stray capacitance and ensuring long‑term reliability even under continuous operation.</n

Low‑noise performance is achieved through careful layout of the switching components and the inclusion of ferrite beads that suppress high‑frequency interference. This results in an ultra‑quiet background that preserves the natural dynamics of your audio signal, making the transformer an ideal choice for high‑fidelity audiophile systems where every nuance matters.

Installation is straightforward thanks to clearly labeled input and output terminals, along with a compact footprint that fits into standard chassis dimensions. The unit complies with international safety standards, featuring over‑current and over‑temperature protection mechanisms that safeguard both the transformer and the connected audio circuitry.

Usage

Designed for both professional studios and home audio enthusiasts, this transformer excels in a variety of applications. In high‑end audiophile amplifiers, it supplies clean, stable power that enhances the musicality of vintage tube circuits, delivering warm mids, articulate highs, and deep, controlled bass without unwanted hum or hiss.

Guitarists and boutique amplifier builders also benefit from the transformer’s robust output, as it can drive medium‑power single‑ended and low‑power push‑pull configurations with confidence. Its ability to handle fluctuating mains voltages ensures consistent tone even in venues with unstable power supplies.

For DIY hobbyists, the transformer’s clear labeling and universal input range simplify the build process, reducing the need for additional voltage regulation components. It integrates seamlessly into kit projects, custom builds, and restoration of classic tube equipment, providing a reliable power backbone that modernizes legacy designs.

In educational settings, the transformer serves as a practical example of modern switching power supply technology applied to analog audio, allowing students to explore the intersection of digital efficiency and analog warmth.

Why Choose Us

GODIYMODULES has a reputation for delivering high‑quality electronic components that meet rigorous industry standards. Each transformer undergoes a multi‑stage testing process, including load regulation, thermal cycling, and electromagnetic compatibility assessments, ensuring that every unit performs reliably from the first day of use.

Our commitment to customer satisfaction extends beyond the product itself. We provide comprehensive technical documentation, wiring diagrams, and responsive support channels to assist users in troubleshooting and optimizing their designs. This level of service reduces downtime and enhances the overall building experience.

Quality assurance is reinforced by a 12‑month limited warranty, covering defects in materials and workmanship. Should any issue arise, our dedicated support team works quickly to resolve concerns, offering replacement parts or guidance to maintain uninterrupted operation.

Environmental responsibility is also a priority; the transformer is manufactured using RoHS‑compliant components, and the packaging is designed for minimal waste, reflecting our dedication to sustainable practices without compromising performance.

Key Features

• Wide input voltage range (100‑265V AC) ensures global compatibility and stable operation.
• Dedicated 6.3V 5A filament output provides consistent cathode heating for reduced microphonics.
• 300V 300mA high‑voltage output supports a broad selection of vacuum tubes, enhancing tonal flexibility.
• Low‑noise design with ferrite suppression delivers ultra‑quiet background, preserving audio detail.
• Comprehensive after‑sales support and 12‑month warranty guarantee reliable performance and peace of mind.

FAQ

What tubes are compatible with this transformer?

The transformer is tested and approved for use with EL34, 6P3P, 6P1, 6P14, 6V6, 6P6P, FU‑7, and many other medium‑power single‑ended and low‑power push‑pull tubes. It can also be used with custom tube configurations that require similar filament and plate voltage specifications.

Can this transformer be used in a push‑pull amplifier design?

Yes, the 300V high‑voltage output at 300mA is suitable for low‑power push‑pull configurations. The transformer’s stable voltage regulation helps maintain balanced operation across both halves of the push‑pull circuit, ensuring consistent performance.

Is the transformer safe to operate with a 120V or 230V mains supply?

Absolutely. The wide input range of 100‑265V AC covers both 120V (North America) and 230V (Europe and many other regions) mains supplies. Built‑in over‑current and over‑temperature protection further enhances safety during operation.

What warranty and support options are available?

Each unit includes a 12‑month limited warranty covering manufacturing defects. Our technical support team is available via email and phone to assist with installation, troubleshooting, and optimization, ensuring you get the most out of your transformer.

How does the transformer affect the overall sound of a tube amplifier?

By providing clean, stable power with minimal noise, the transformer helps preserve the natural dynamics and tonal characteristics of the tubes. Users report clearer mids, smoother highs, and tighter bass response, with reduced hum and hiss compared to lower‑quality power supplies.
