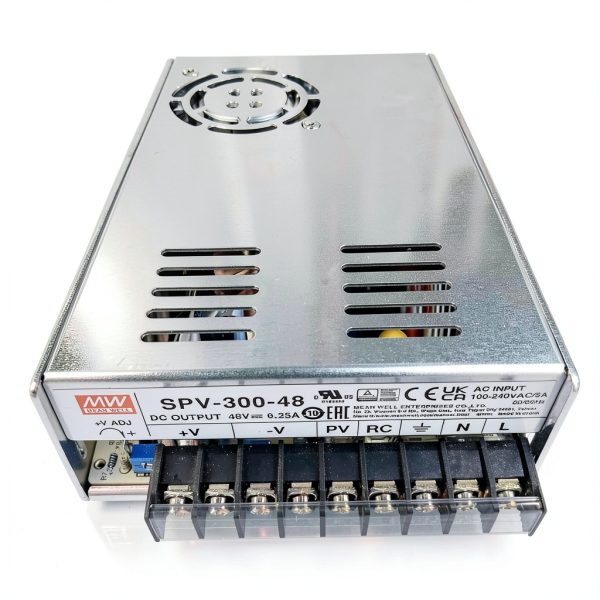

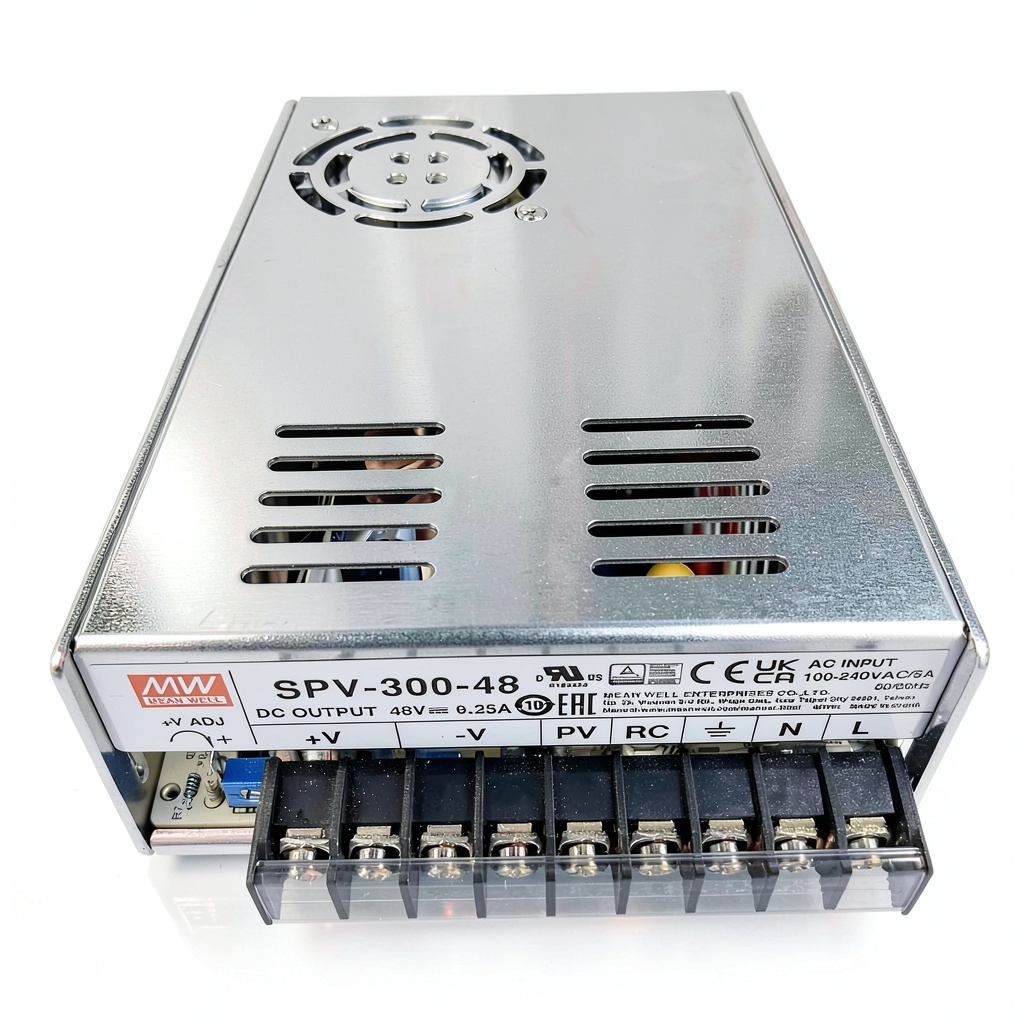

Mean Well SPV-300-48 300W Isolation Transformer with Active PFC

Description

Product Overview

The Mean Well SPV-300-48 is engineered as a high‑performance, single‑output isolation transformer delivering up to 300 watts of clean, regulated 48 V power. Designed for demanding industrial and scientific environments, this unit incorporates an active power factor correction (PFC) circuit that consistently achieves a PF greater than 0.95, reducing harmonic distortion and improving overall system efficiency. Its universal AC input range accommodates worldwide voltage standards, while the output voltage can be finely adjusted from 20 % to 110 % of the nominal value through a simple 1‑5.5 VDC external control signal, granting users precise control over voltage levels for a wide array of equipment.

Robust construction is a hallmark of the SPV-300-48. The transformer housing is fabricated from high‑grade, flame‑retardant material that meets stringent IEC standards, ensuring durability under harsh operating conditions. Internally, the power stage utilizes a fixed 100 kHz switching frequency, which balances efficiency and electromagnetic interference (EMI) performance. A built‑in DC fan provides forced‑air cooling, maintaining optimal temperature even under continuous full‑load operation. The fan speed is automatically regulated based on temperature, and users can also command fan speed via an external control line for customized cooling strategies.

Usage

This transformer excels in applications where reliable, isolated power is essential. Typical deployment scenarios include CNC machines, laser cutters, medical imaging equipment, test and measurement instruments, and automation controllers. Its compact footprint and modular design allow easy integration into standard 19‑inch rack enclosures or custom panels. The built‑in remote ON‑OFF control simplifies system start‑up and shutdown sequences, enabling seamless coordination with other equipment through a single control line. Additionally, the programmable voltage feature makes the SPV-300-48 suitable for battery charging stations, LED driver circuits, and any load that requires fine voltage tuning.

Engineers and system integrators appreciate the comprehensive protection suite: short‑circuit, overload, over‑voltage, and over‑temperature safeguards are all active, instantly disconnecting the output to prevent damage to downstream devices. These protections are complemented by a robust thermal design that ensures the unit operates within safe temperature limits, even in environments with limited airflow. The transformer’s universal AC input also means it can be deployed in regions with 100‑240 V mains without the need for additional converters or transformers.

Why Choose Us

Choosing the Mean Well SPV-300-48 means selecting a product backed by decades of expertise in power conversion technology. Mean Well’s reputation for quality is reflected in rigorous testing procedures, including burn‑in, vibration, and humidity tests that certify the unit’s reliability over its projected service life. The transformer is manufactured in a ISO‑9001 certified facility, ensuring consistent quality control from component sourcing to final assembly.

Beyond the hardware, Mean Well provides comprehensive technical support and a responsive after‑sales service network. Customers receive detailed datasheets, application notes, and design guidelines to accelerate integration. In the unlikely event of a component failure, the company offers a straightforward warranty process and rapid replacement parts, minimizing downtime for critical operations.

Key Features

• Active PFC delivers >0.95 power factor for efficient energy use
• Programmable output voltage from 20 % to 110 % via a simple control signal
• Built‑in fan cooling with automatic speed regulation for reliable operation
• Comprehensive protection (short‑circuit, overload, over‑voltage, over‑temperature) safeguards equipment
• Mean Well’s dedicated support and warranty ensure peace of mind for long‑term projects

FAQ

What is the input voltage range for the SPV-300-48?

The unit accepts a universal AC input of 100‑240 V, making it suitable for worldwide deployment without additional converters.

How does the programmable voltage feature work?

By applying a DC control voltage between 1 V and 5.5 V to the designated input pin, the output voltage can be adjusted proportionally from 20 % to 110 % of the nominal 48 V, allowing fine‑tuned power delivery for specific load requirements.

Can the transformer be remotely turned on and off?

Yes, a built‑in remote ON‑OFF control line enables external devices or a PLC to start or stop the power supply, simplifying system integration and power management.

What cooling method is used and can it be controlled?

The SPV-300-48 uses forced‑air cooling via an internal DC fan. The fan speed is automatically adjusted based on temperature, and users may also control the speed through an external signal for customized cooling strategies.

Is there a warranty or support available?

Mean Well provides a standard one‑year warranty covering manufacturing defects, along with technical support and access to replacement parts to ensure continuous operation of your equipment.
